iMX6 TinyRex – Passed EMC Testing

Posted on by

To help you be more confident when using iMX6 TinyRex in your products, we did some EMC testing.

Here is a video from our testing

The setup passing FCC CLASS B
iMX6 TinyRex - EMC Setup

The setup passing through FCC CLASS B: iMX6 TinyRex + Lite Baseboard, 2x USB memory stick, HDMI output connected to HDMI input, Ethernet loopback, Switching power supply, enclosure, running heavy testing script for USB and SD card read/write test, stressapptest for CPU and memory, HDMI output & HDMI input in 1920×1080, Ethernet SSH session.

iMX6 TinyRex passing FCC CLAS B

Vertical polarization Horizontal polarization

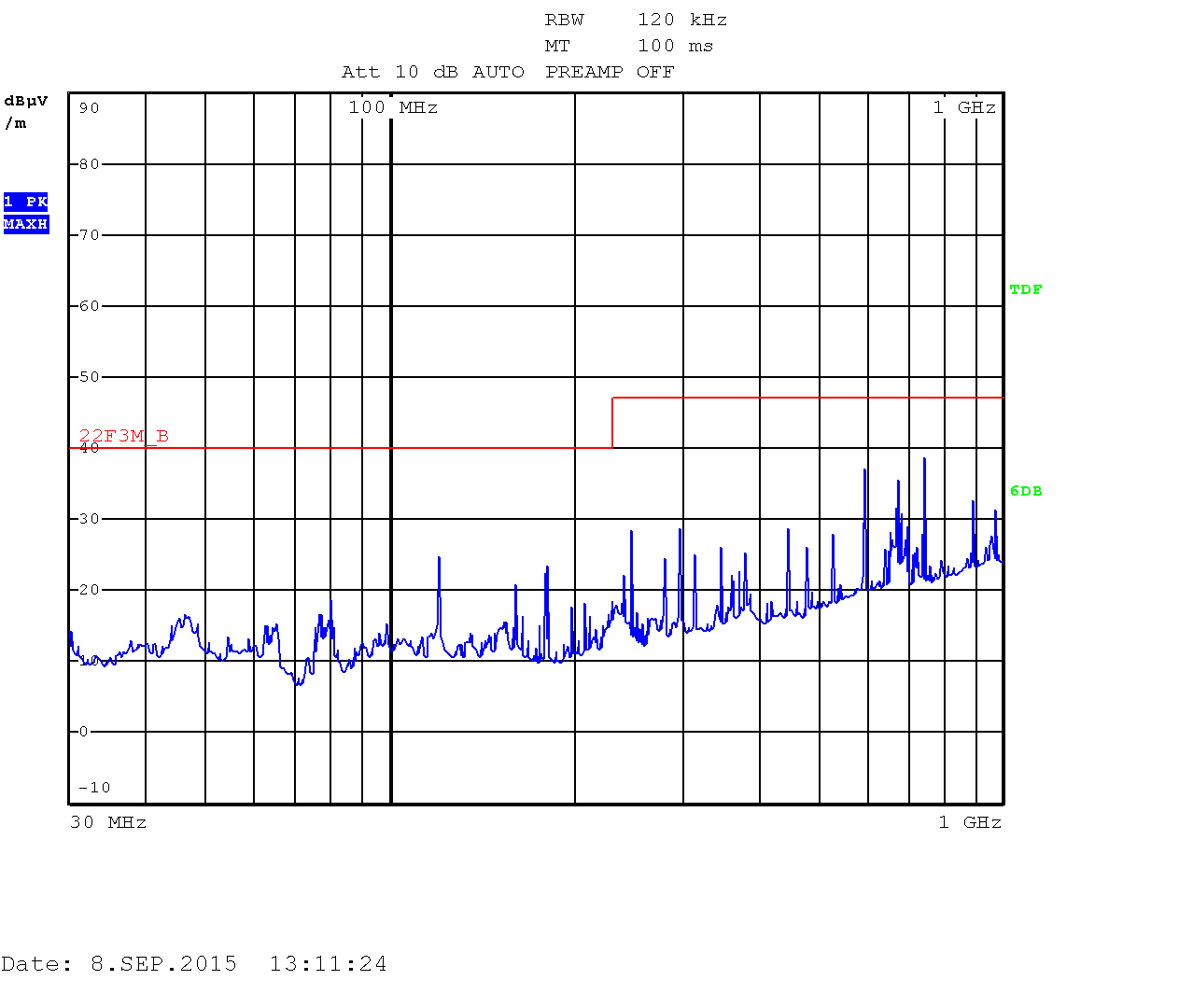

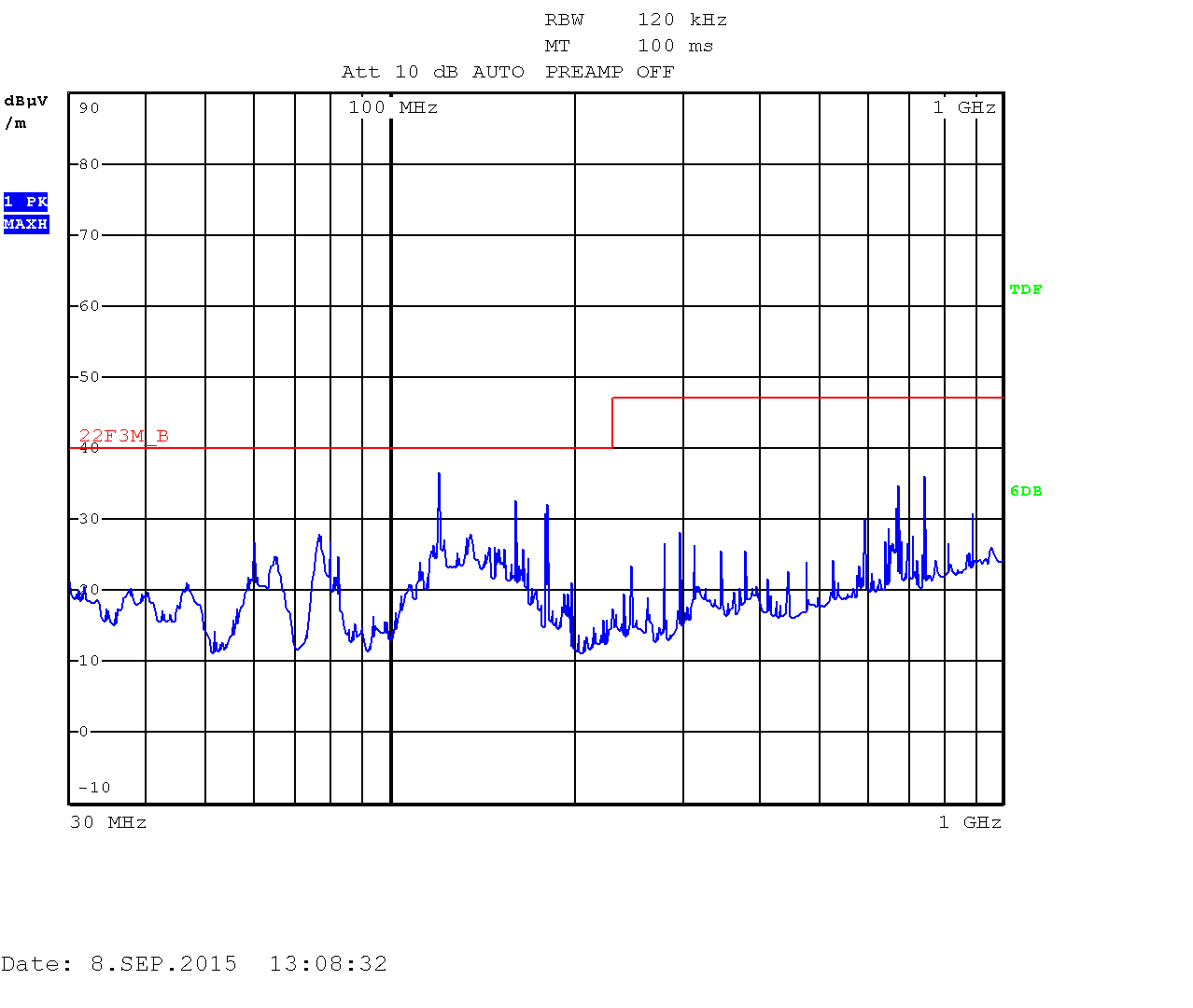

iMX6 Rex EMC - Heavy loaded with enclosure - Vertical 300px
Heavy Testing with enclosure

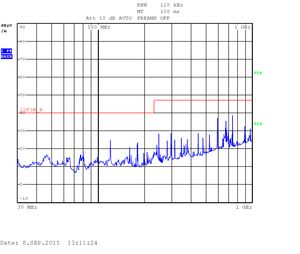

iMX6 Rex EMC - Heavy loaded with enclosure - Horizontal 300px
Heavy Testing with enclosure

The Bare Board

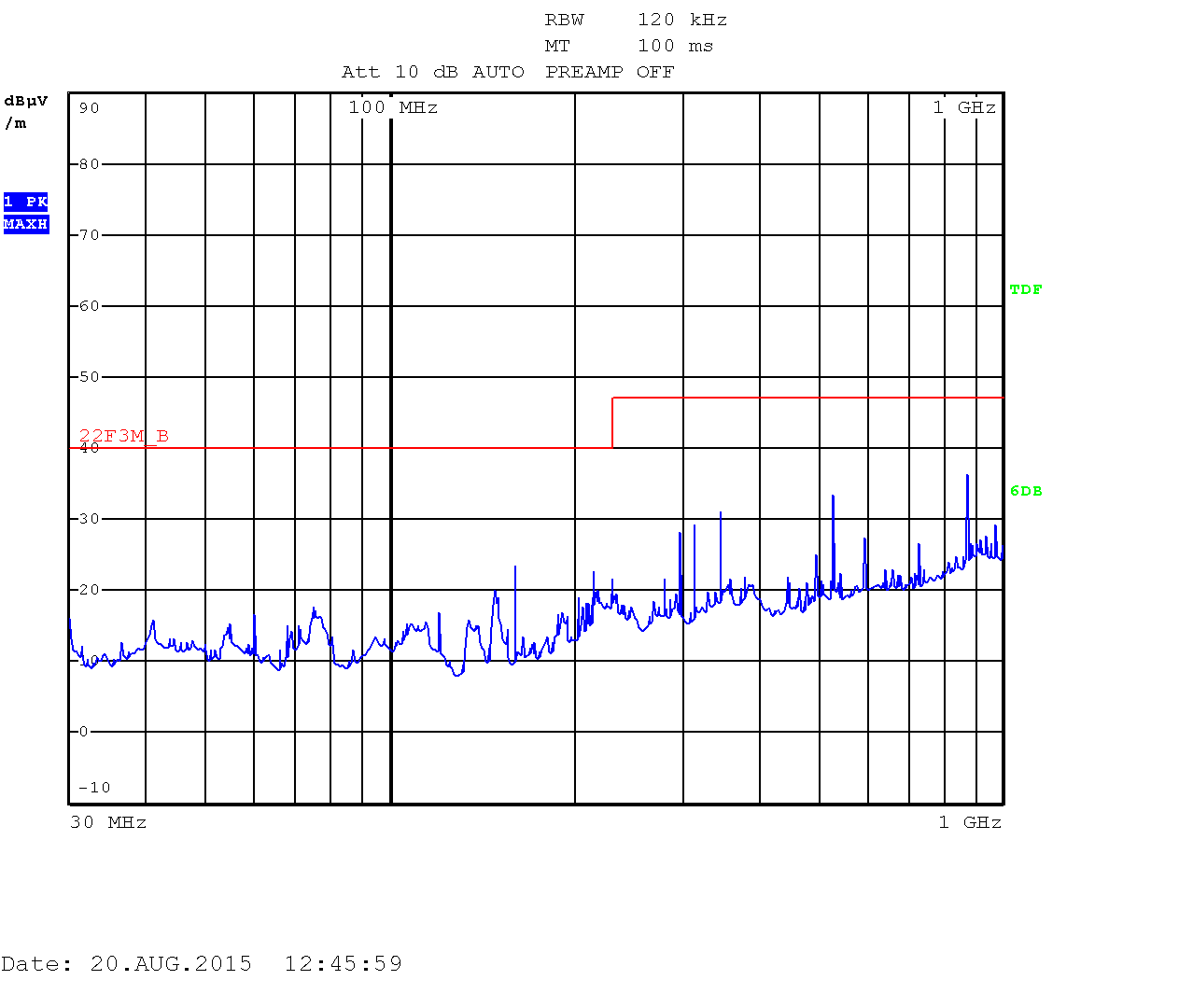

The bare board, with no enclosure, can easily pass FCC Class B (iMX6 TinyRex + Lite Baseboard, 2x USB memory stick, HDMI output connected to Monitor, Ethernet loopback, Switching power supply, no enclosure), but you need to be very careful about HDMI input and SATA. Here is the setup and results:
iMX6 TinyRex - EMC Setup - No Eclosure

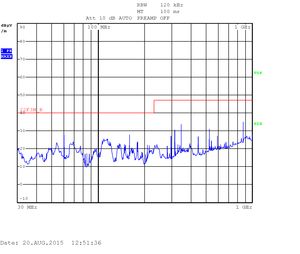

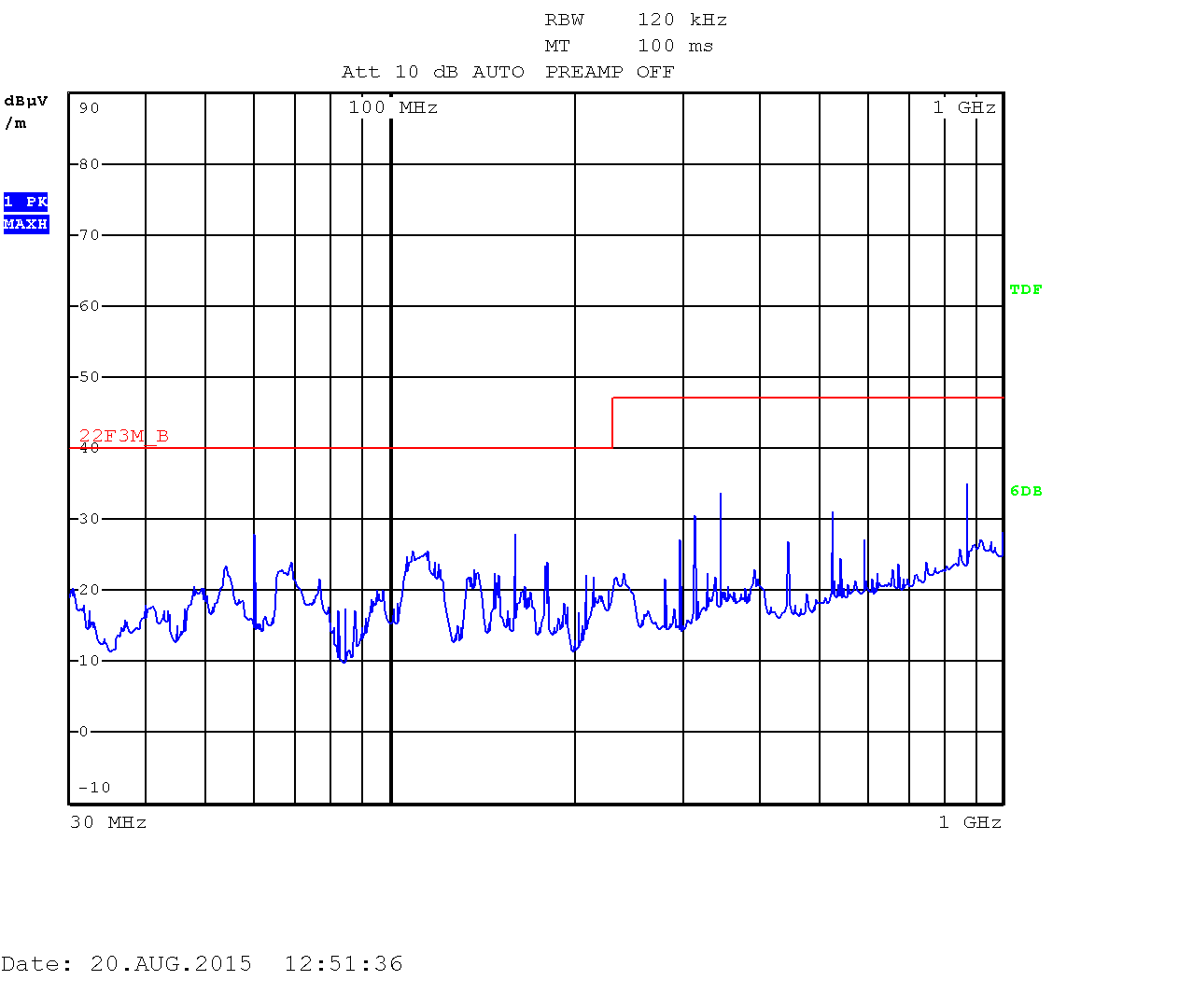

Vertical polarization Horizontal polarization
Heavy Testing
iMX6 Rex EMC - Heavy loaded - Horizontal 300px
Heavy Testing

To get more details about iMX6 TinyRex EMC testing, read here >
