Accessories

Here you can find all the information about small boards & custom cables for iMX6 Rex.

LVDS Adapter for a custom Display with Touchscreen

Designed by FEDEVEL Academy

Created to support ETV570G6DHU – LVDS display with touchscreen. This is a small 5.7″ display with resolution 640×480. The instructions about how to connect it to the iMX6 and software settings can be find here . Feel free to use the files and modify them for your own display.

Altium Project Files

LVDS Adapter Type 1 - Download All Files
LVDS Adapter Type 1 – Download All Files
(Schematic, PCB, Gerbers, BOMs, …)

Please, Register or Login to download this file


Schematic

Schematic - LVDS Adapter Type 1 V1I1
Schematic - LVDS Adapter Type 1 V1I1
Schematic - LVDS Adapter Type 1 V1I1 - Prototype.PDF
402.3 KiB
1333 Downloads
Details

Cable

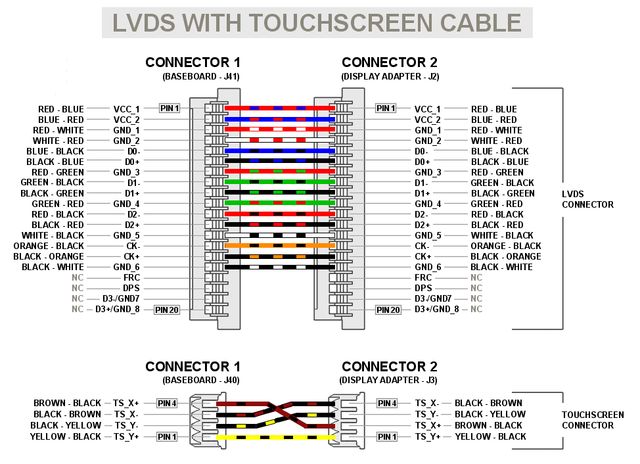

LVDS_WITH_TOUCHSCREEN_CABLE_640px

License

This Accessories designs are completely free for personal and commercial use. Feel free to download and modify these files for your projects. This work is licensed under a Creative Commons Attribution 3.0 Unported License
Creative Commons License
