Development Baseboard for iMX6 Rex Module

Posted on by

iMX6 Rex Module Stackup
The iMX6 Rex Development Baseboard connects all the peripherals from the module and adds extra wireless support.

iMX6 Rex Development Baseboard specification (may change)

  • 1x 1Gb Ethernet
  • 1x HDMI with Audio support, 1x LVDS + Backlight Connector
  • Digital audio codec: Microphone in, Line in/out, Headphones
  • 1x mini PCIE (USB Only), SIM socket. Use with GPRS / 3G and other wireless modems. Includes also modem VOICE support (Microphone in, Line in, Speakers)
  • 1x mini PCIE with SIM socket (or Optional: x1 PCI Express Slot, 1x USB host on header). Use with any mini PCIE cards such Wifi, Wireless modem, …
  • 3x USB (or Optional: 1x OTG USB)
  • Soldered down MMC NAND FLASH (up to 64GB)
  • 1x CFAST (or Optional: SATA connector)
  • 1x micro SD socket, 1x EEPROM
  • 1x RS232, 1x Serial port (CMOS / TTL), 1x SPI on header
  • 8x General purpose Input / Output pins. Can be used for buttons, LEDs, …
  • Battery backed up Real time clock
  • User LED, Power LED, MMC Activity LED
  • User Button, Reset Button, ON / OFF Button
  • JTAG
  • Input voltage 7 to 24 DC (or Optional: ATX connector)

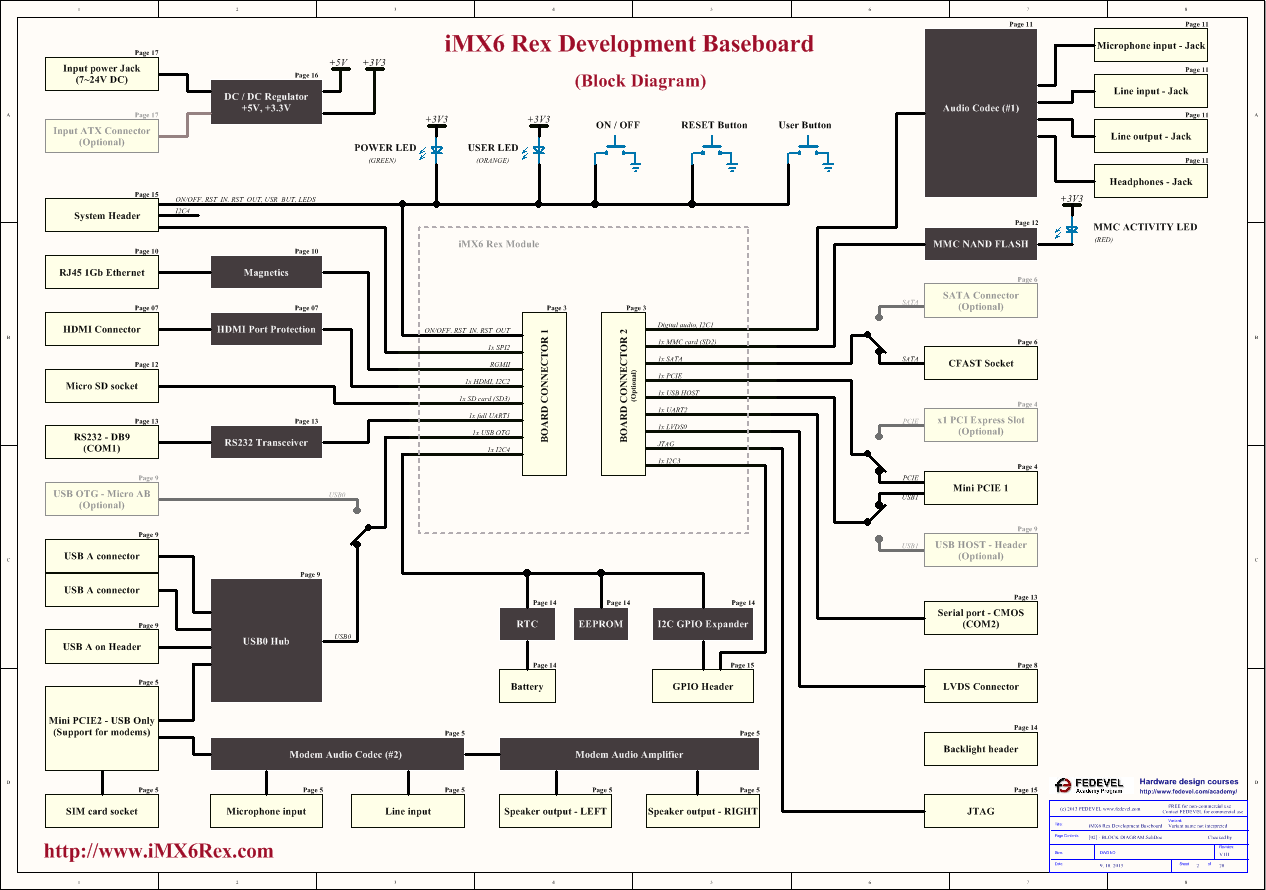

See the full block diagram here. Schematic & PCB will be open source and once the files are ready we will upload them here.
