OpenRex Schematic is now Available :)

Many people have contacted us about OpenRex project. The project has been a little bit delayed, but we are now working hard to finish it this year. Here is our progress.

Please let us know if you like OpenRex. It was a loooot of work :) Thank you!

You can now download OpenRex schematic in PDF:

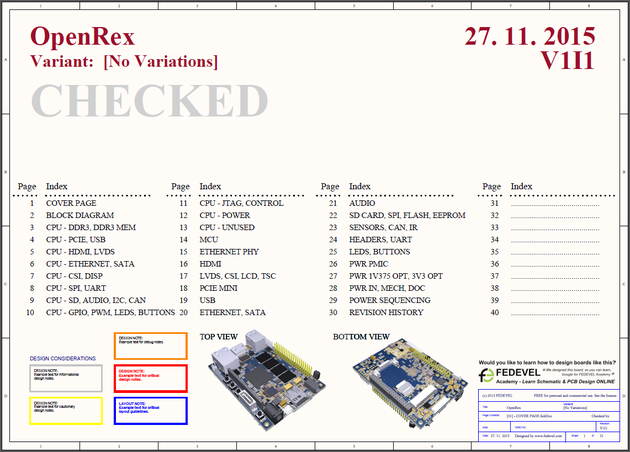

OpenRex Schematic Screenshot

This is the updated OpenRex 3D PDF (use Adobe Reader to see it):
OpenRex - 3D picture

Here are some screenshots from PCB (10 Layers, through hole VIAs only). Almost done:

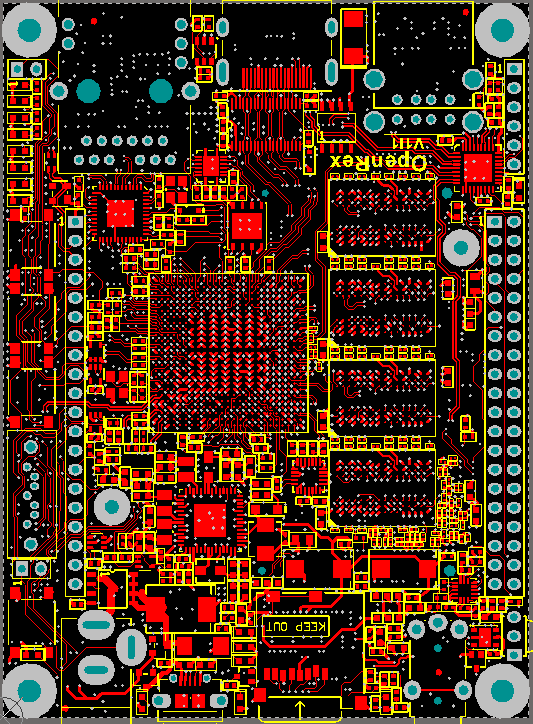

OpenRex - L1

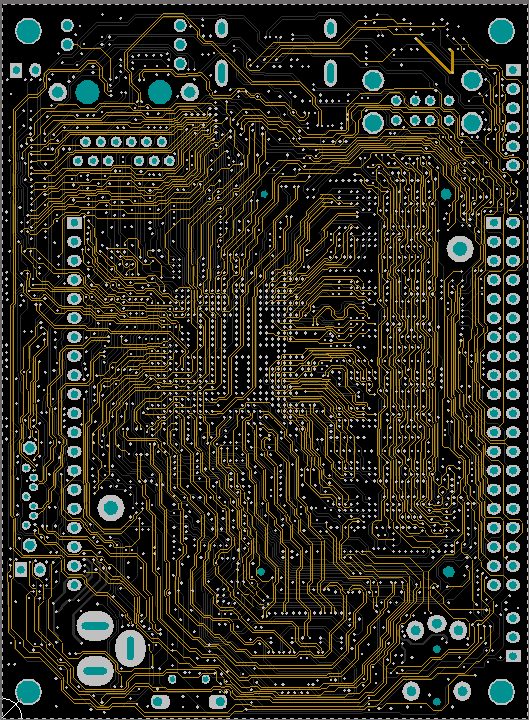

OpenRex - L3

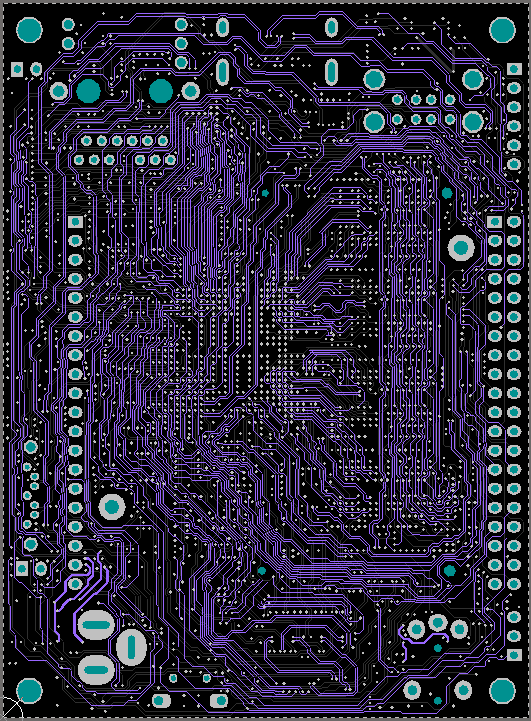

OpenRex - L8

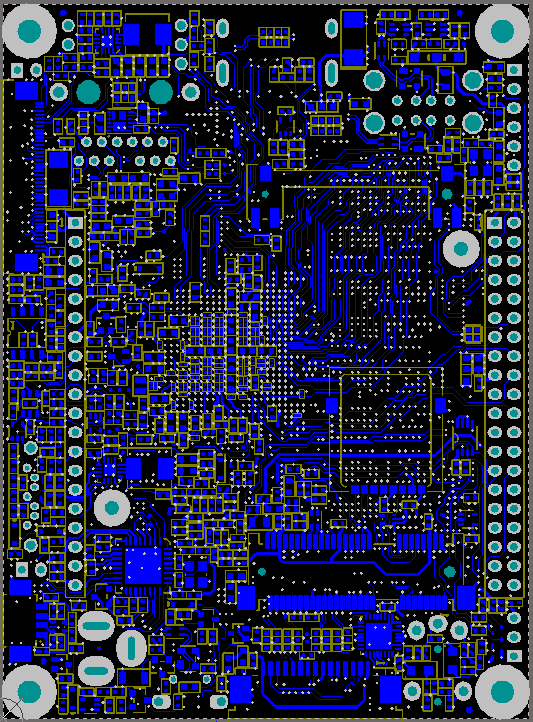

OpenRex - L10

After we test the prototype, all the data, including Altium project and Gerber files, will be available for download.

If you would like to be notified, when the project is available, submit your email into the following form and I will send you an email then:
