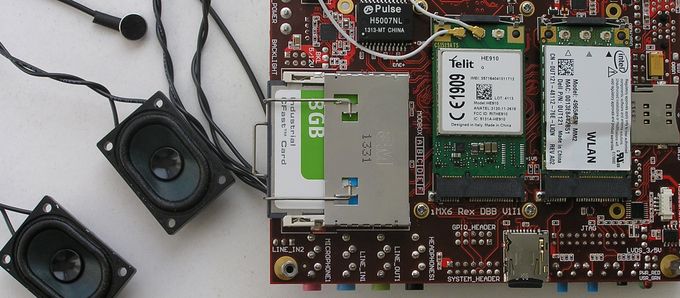

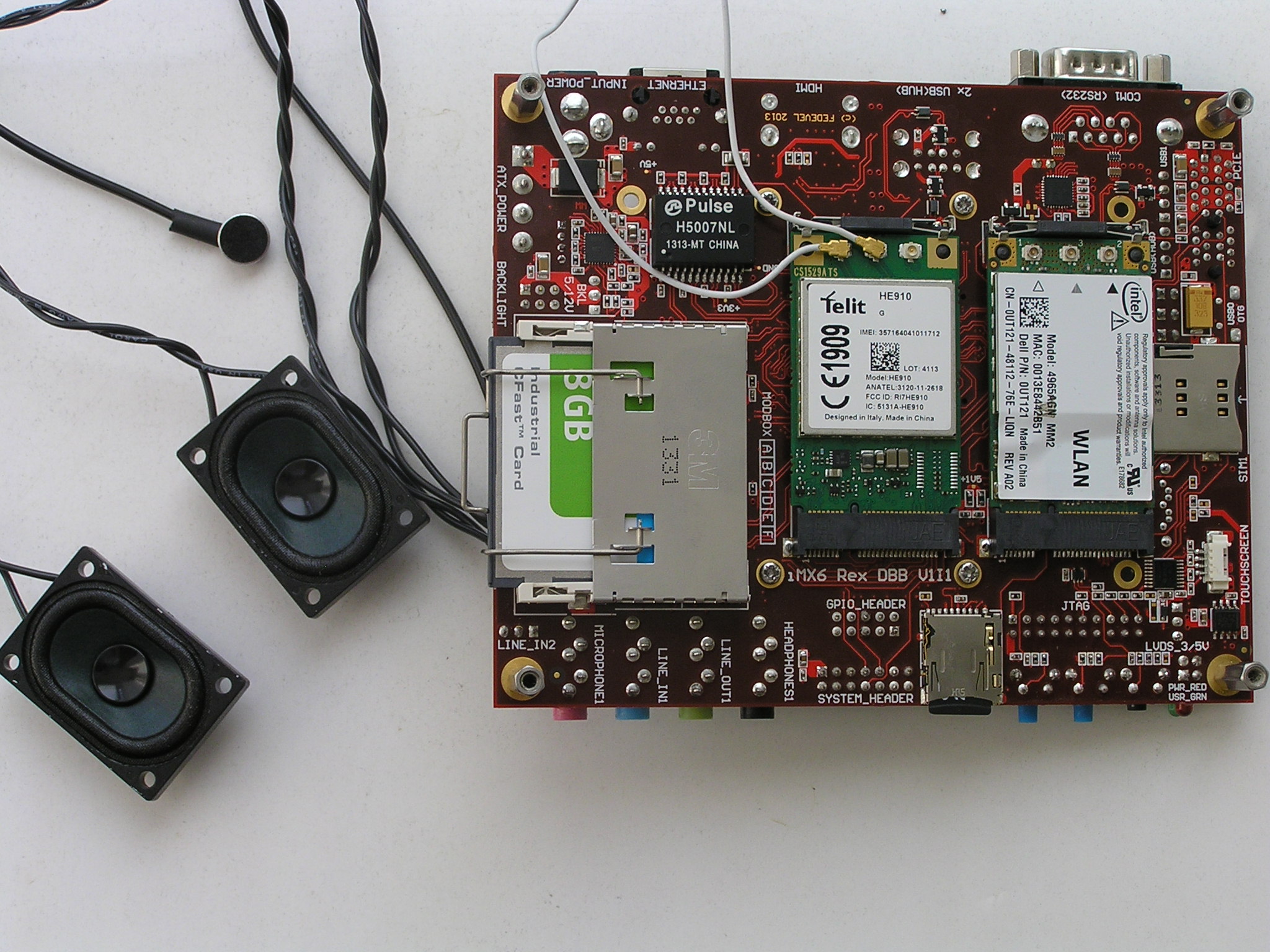

Yesterday, we made our first call to Rex. The Telit HE910 PCIE mini card modem voice support works great. It’s even ringing through the speakers
More about how we tested it here >>
We have successfully tested TG-348 PCIE Ethernet card (Realtek RTL8168E) plugged in the iMX6 Rex Baseboard.
We have the proper GUI running on the iMX6 Rex USB Keyboard and USB mouse are running oki.
We have connected LVDS and added Linux driver for our audio codec. Tested and working oki.

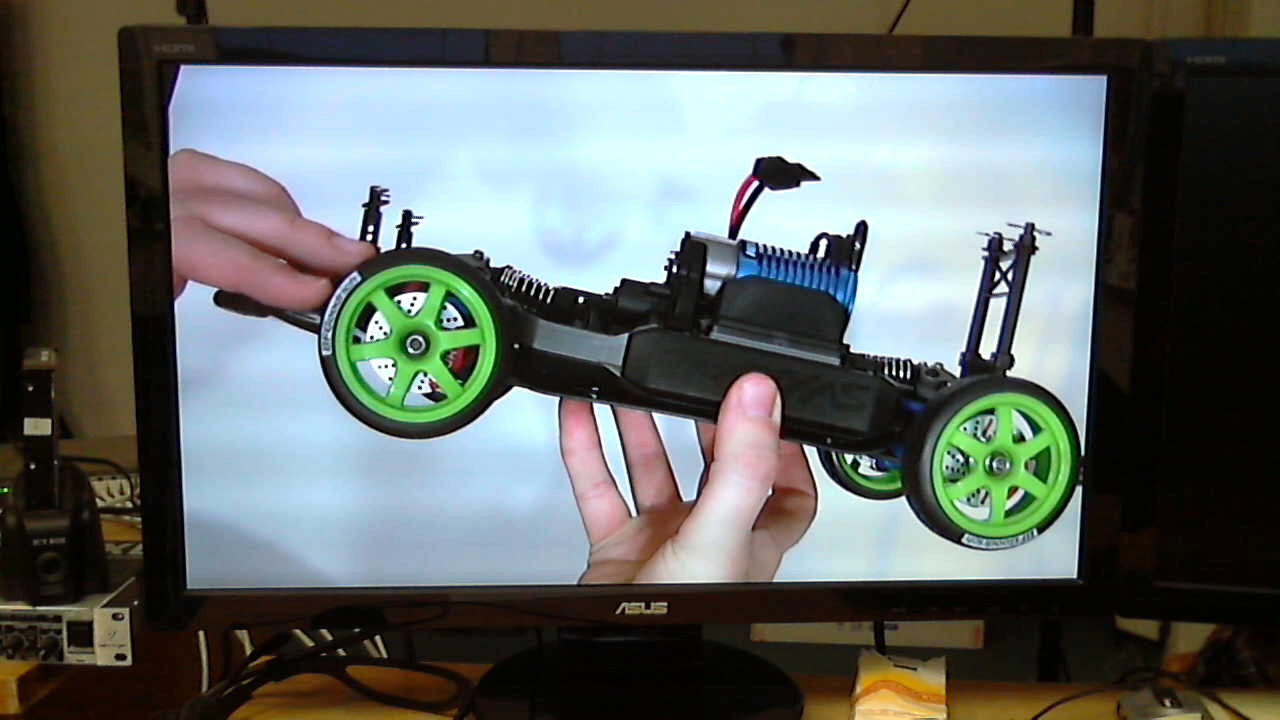

We have successfully played an AVI video file on our HDMI monitor. We played the file from an USB stick and from an SD card to test all the USB connectors and SD slots located on the iMX6 Rex baseboard. Working oki
If you are interested to see the running iMX6 Rex module + baseboard, you are welcome to come to Silicon Valley this Saturday (14-DEC-2013). I will be speaking about “Learn to Design your own OS booting ARM board“. It’s free
We have not had enough time to fit all the components yet, but so far so good Serial console is working, Ethernet is working, USB is working. The module booted up over network. More news coming next week, when I am back from the US. And here are some pictures ….

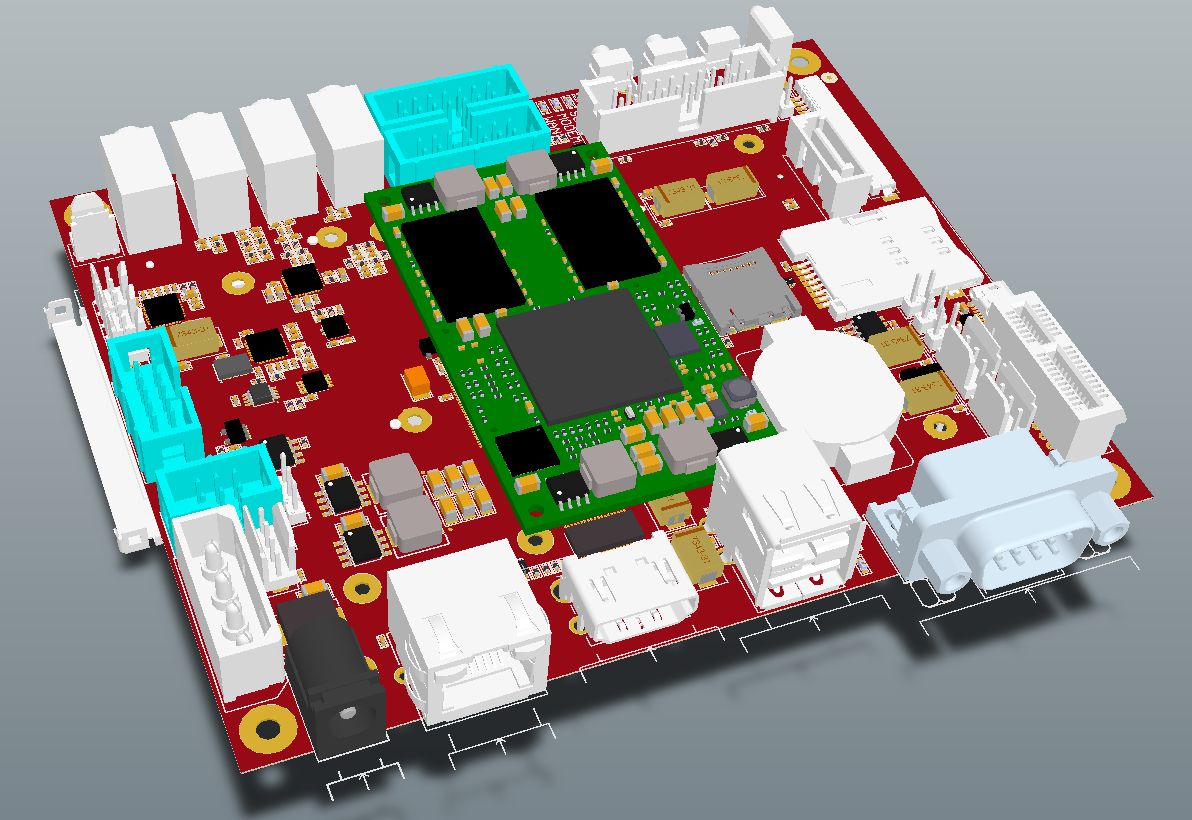

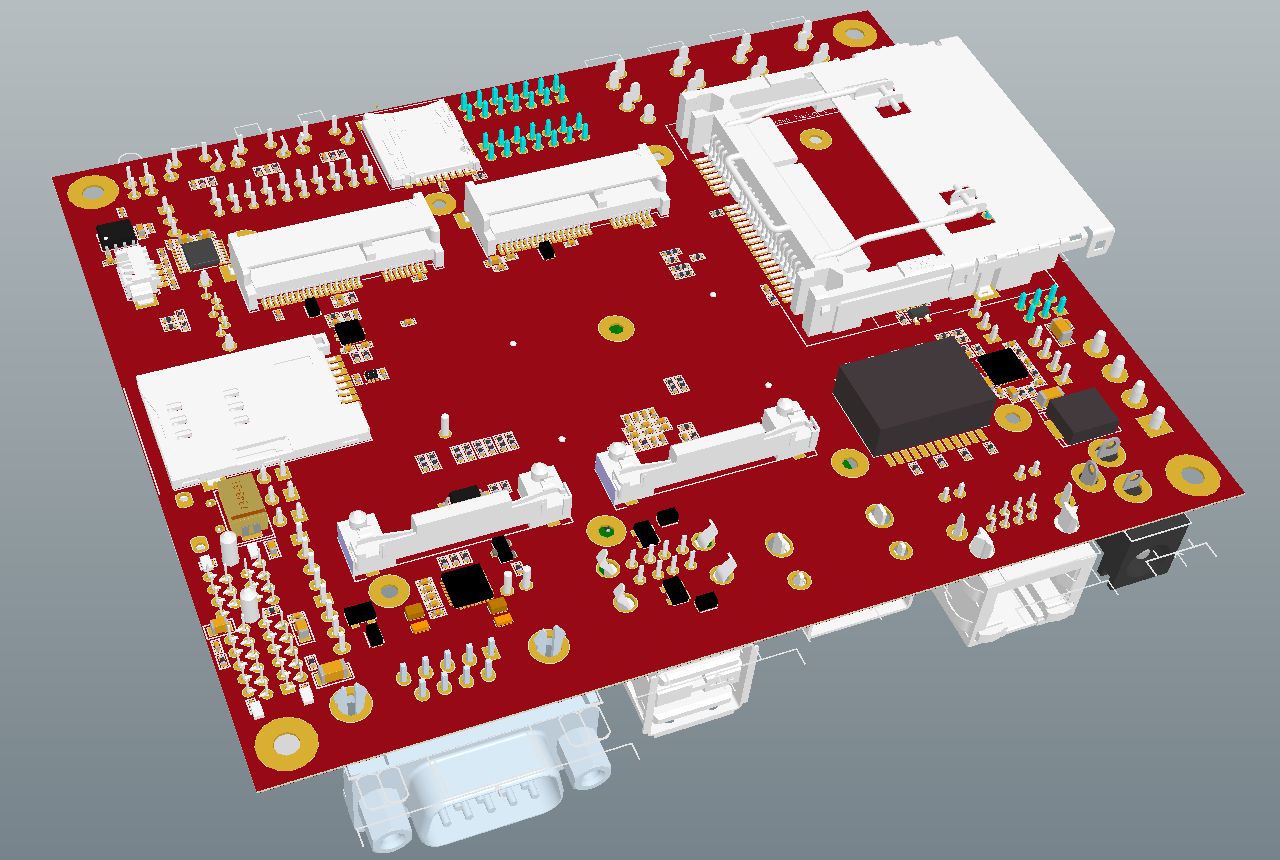

You can see the full specification and download 3D PDF of the iMX6 Rex Development baseboard here >>
