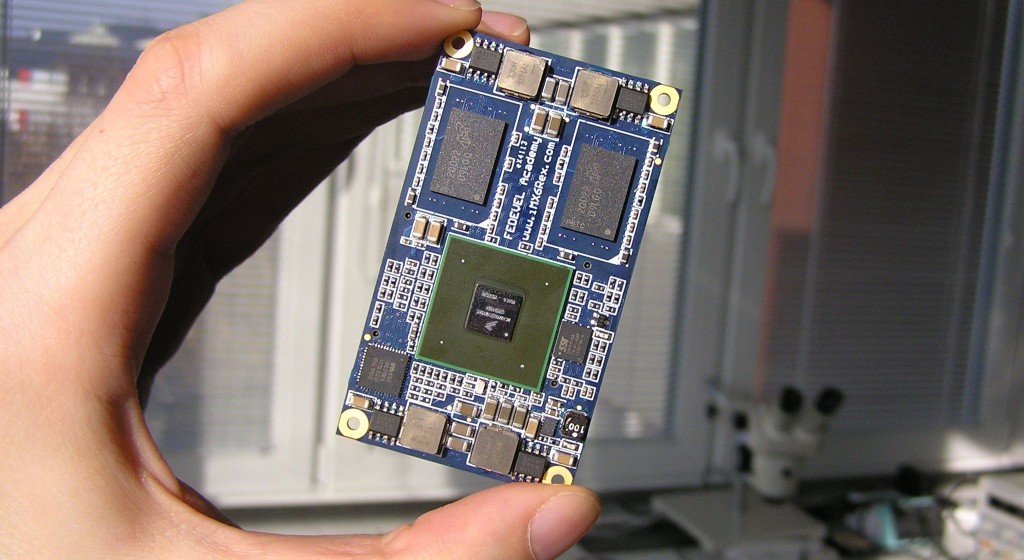

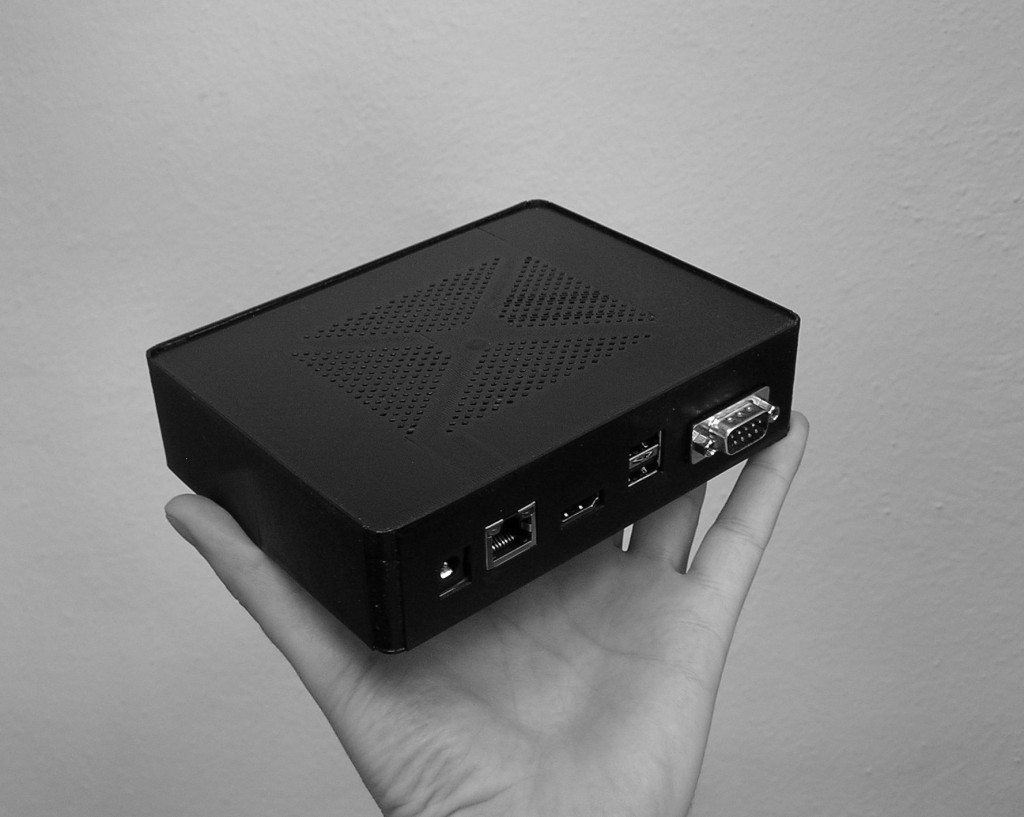

iMX6 Rex module

Based on NXP (Freescale) i.MX6 CPU. This is an open source project. All documents are free for download, including Schematic and PCB files.


The iMX6 Rex Module is also used for teaching about Schematic Design and Advanced PCB Layout at FEDEVEL Academy.

Status

Available. Purchase iMX6 Rex module from VOIPAC >

Module Specification

imx6_rex_module_top_150px

  • NXP (Freescale) iMX6 processor, up to 1.2GHz / 4 cores
  • Soldered down DDR3-1066 (533MHz), up to 4GB
  • 10/100/1000 Mbps Ethernet
  • 1x HDMI (up to QXGA 2048×1536)
  • 1x LVDS (up to WUXGA 1920×1200)
  • 1x PCIE
  • 1x SATA
  • On board SPI Flash up to 32Mb
  • 1x SD (or optional 2x CAN), 1x MMC
  • 2x USB
  • 3x UART, 3x I2C, 1x SPI
  • Digital audio
  • JTAG
  • User LED, power LED

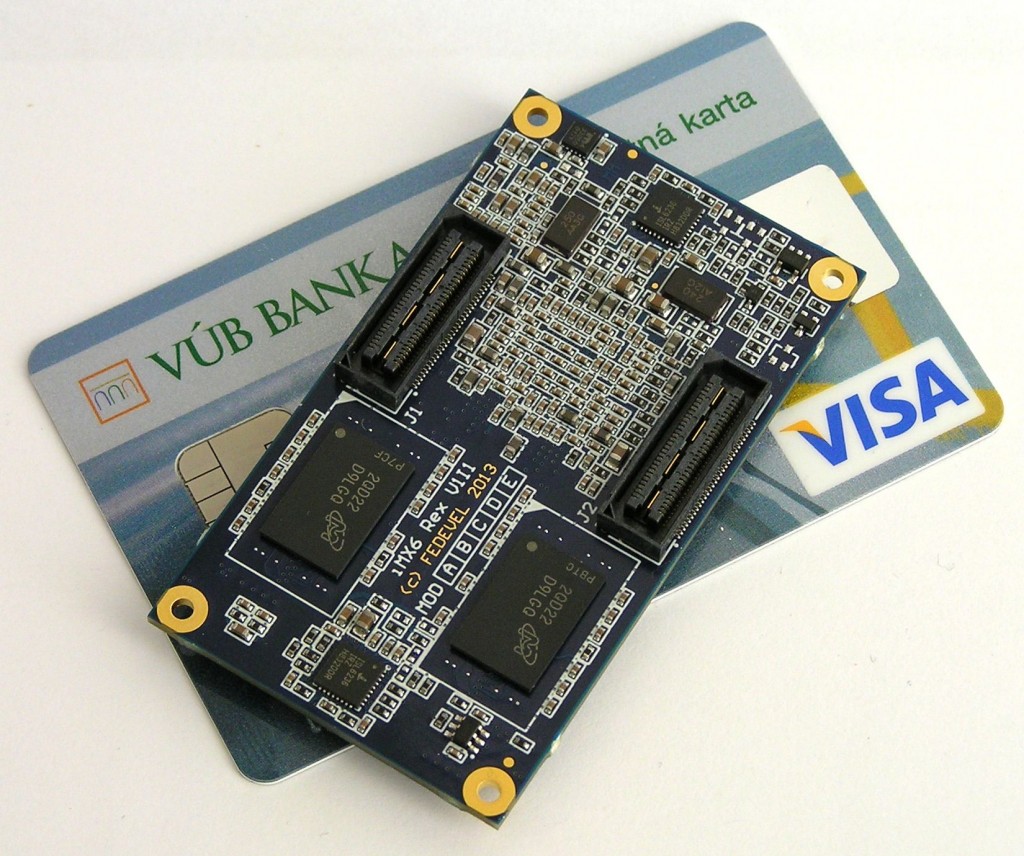

  • 2x high speed board to board connectors (only one required)

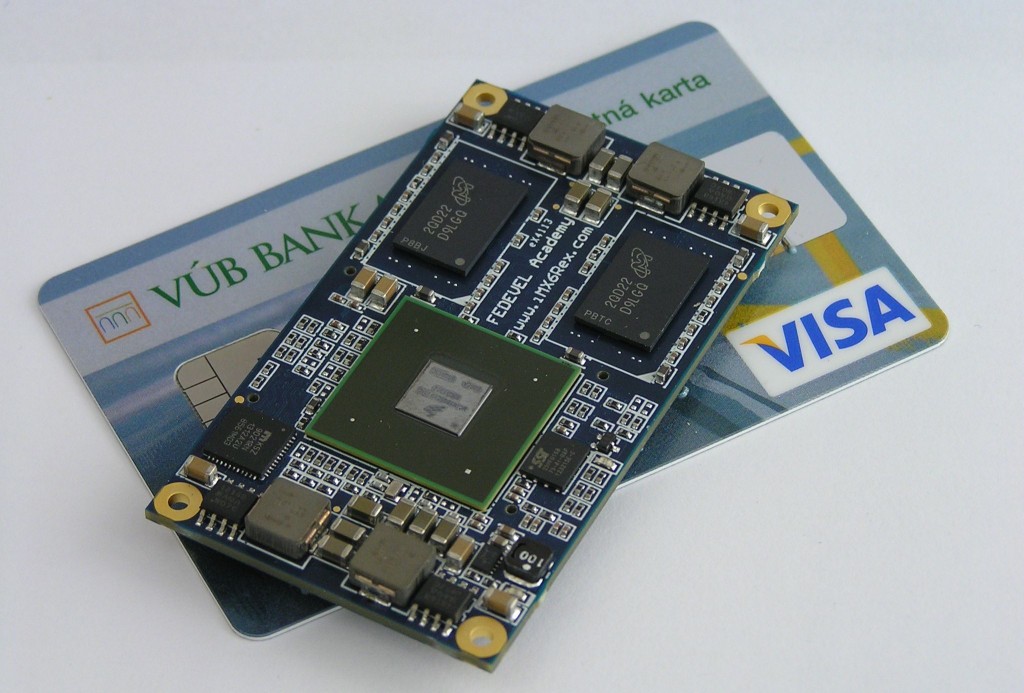

  • Size: 70 x 40 mm (smaller than a credit card)
  • Input power: 7 to 24V DC (or single +5V)

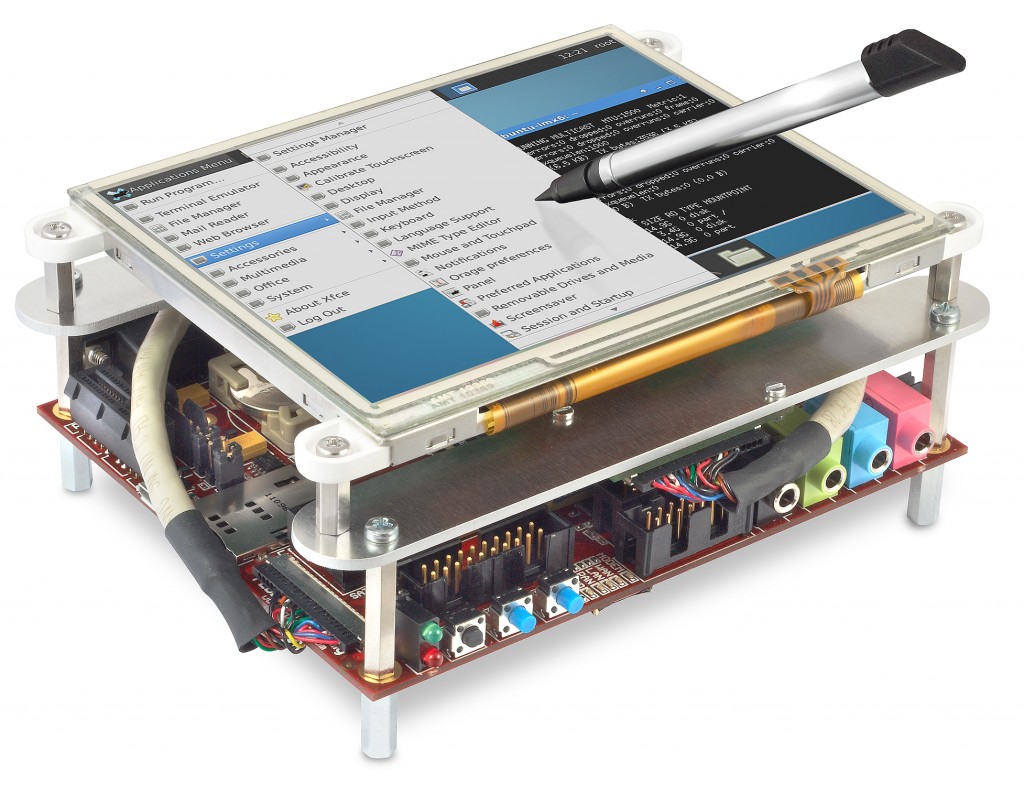

Development Baseboard

imx_rex6_board_top_150px
To run this module in your application, feel free to use our iMX6 Rex Development Baseboard and customize it.


Download The Complete iMX6 Rex Module Altium Project & Manufacturing Files

iMX6 Rex V1I1 - Download All files
iMX6 Rex V1I1 – Download All files
(Schematic, PCB, Gerbers, BOMs, …)

Please, Register or Login to download this file


Getting started

Here you will find instructions how to start with iMX6 Rex Module and Development baseboard for the very first time: Getting started >

Software

Module Schematic

iMX6 Rex Module - SchematicDownload iMX6 Rex Module schematic in PDF

Module Block diagramiMX6Rex block diagram

Module 3D PDF Document (use Adobe Reader)

iMX6 Rex Module - 3D Model

Module Bill of Materials

BOM Total: $116USD / 1000pcs (for CPU 1GHz, QUAD Core, DDR3 1GB)

IMX6 Rex V1I1 - BOM
IMX6 Rex V1I1 - BOM
BOM_Purchasing_iMX6 Rex_V1I1.xlsx
35.6 KiB
4415 Downloads
Details

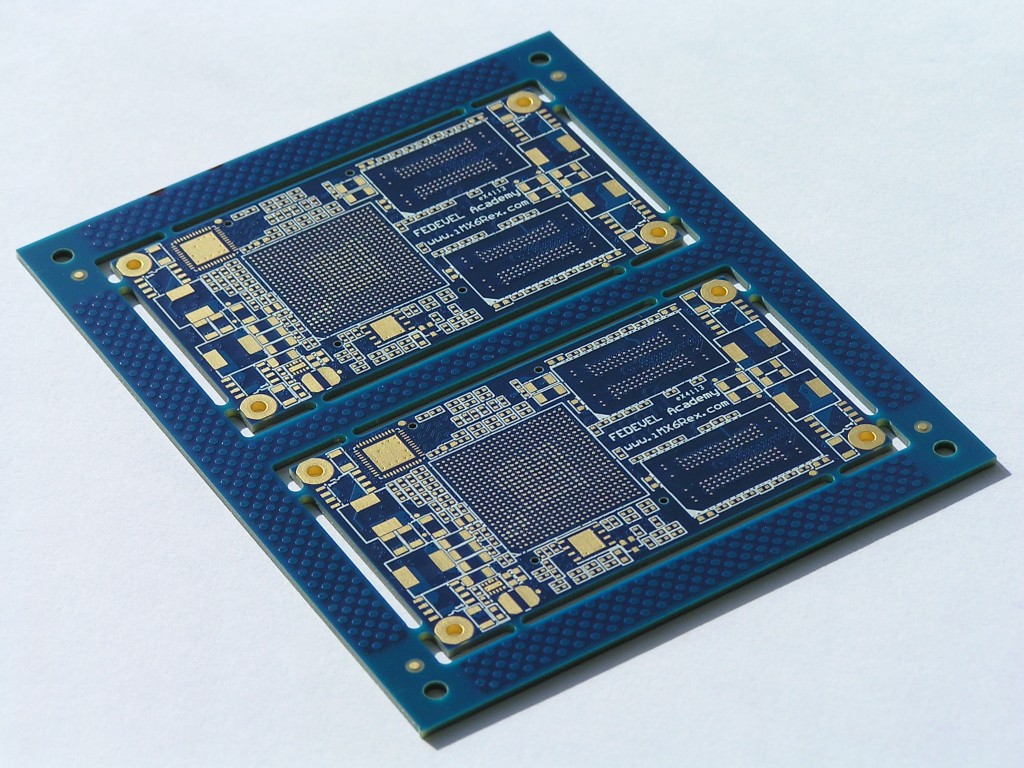

Module Stackup

PCB Cost: $9.32 USD / 1000pcs

iMX6 Rex PCB Stackup
iMX6 Rex PCB Stackup
iMX6 Rex Module V1I1 PCB STACKUP.pdf
145.4 KiB
6074 Downloads
Details

Videos

Running iMX6 Rex Graphics demos

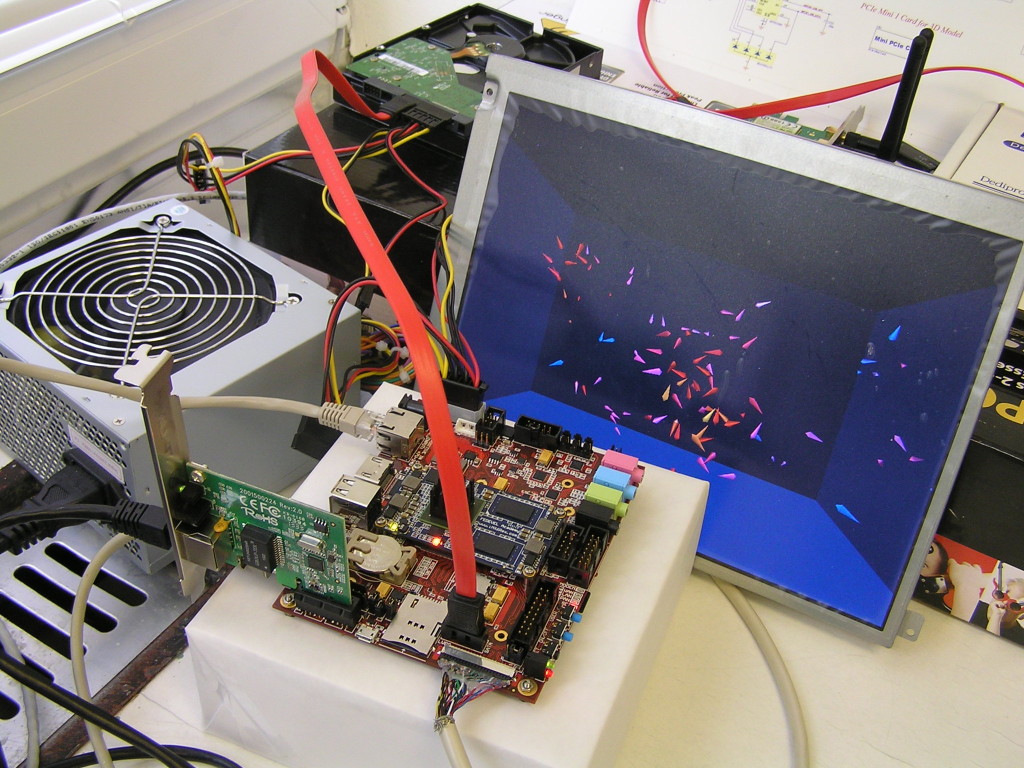

Runnig a PCI Express Card plugged into iMX6 Rex

More videos >>

Releated posts

… read more …

Module License

It is completely free for personal use. If you like this module and you are interested to use it for commercial use, please contact us. There is a pretty high chance, that we will agree on a free license for your commercial project or a small fee $7 may apply. This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.
